Welcome to Kyberlight, home of the greatest customizable saber in the the Galaxy. We are excited you have purcahsed a Kyberlight Customizable Saber and joined Kyberlight Nation. This is just the start, with dozens of accessories and endless possibilities, you can begin today and never stop creating the perfect saber.
Don’t get stuck with one design. You can find custom pommels, sleeves and emitters to change your look anytime, anywhere, for any occasion.
Our sabers are built to last. Don’t be afraid to have fun! Duel, clash and have a blast!
Updates and Infomation
If you have any questions about your new Kyberlight V10 saber please reach out to us on our Contact Us page and we will respond in about 2 business days.
Downloads
FAQs
RGB sabers have 3 saber modes. Standard, Ghost and Blaster. Some sounds fonts default to Ghost or Blaster mode. If you want to change these while the saber is in Standby hold Power and tap AUX. This will change the saber mode.
If you would like to remove all the Ghost and Blaster modes at once you can visit our Updates page and download an update file for your Saber.
This page has been updated and should now work with updates.
It is most likely you have activated Multi Lock Mode, Hold the AUX button for 1 LED flash or 0.5 seconds and you should hear confirmation of exiting Multi Lock Mode. Try to power off the saber now.
Also holding the AUX button will first change a font, keep holding the AUX button and the saber will turn off.
The Kyberlight App is still being developed. Your V10 saber comes equipped with Bluetooth and will be app enabled once we launch. A date has not been set yet.
By default the volume is set to 100%. You can adjust the volume while in standby by holding the AUX button for for 1 LED Flash. The volume will change from 100% -> 75% -> 50% -> 25% -> Mute.
If you would like to lower the max volume all the time you can adjust this in the configuration file. Open the file config.ini in a text editor and change the line that says 'volume=100' to a lower number this will change the max volume of the saber.
To make all the pixel effects work you must configure your blade length for your saber. You can do this by adjusting the line 'main_blade_pixel_led_number=132'. For more detailed instructions click this here.
The button height on the new V10 saber is adjustable. The two screws behind the buttons are meant to not be fully tight and to raise
and lower the button height. Unscrew them so they are just flush with the saber hilt and the buttons should lower into the hilt just enough to remove the
sleeve.
If your saber will not charge please follow the following troubleshooting steps.
- Remove the bottom half of the hilt to remove the battery, reinsert the battery, and try charging again.
- Please make sure the two set screws behind the buttons are fully inserted so that when attaching the charging chord good contact is made. Do not Over Tighten these screws as you can damage the saber electronics.
- If your saber has gone completely dead it will take a few minutes to announce 'Charging' and the buttons will not light up at first. Leave your saber plugged in for at least 10 minutes.
- Please use the USB-C cable that came with your saber. Make sure to use the USB Type A to USB Type C cables. These are required or your saber may not charge.
- If your saber 'clicks' or 'chirps' when plugged in it is probably very low on battery. The saber is trying to announce 'Charging' but doesn't have enough power. Leave your saber plugged in for at least 10 minutes and it should continue to charge.

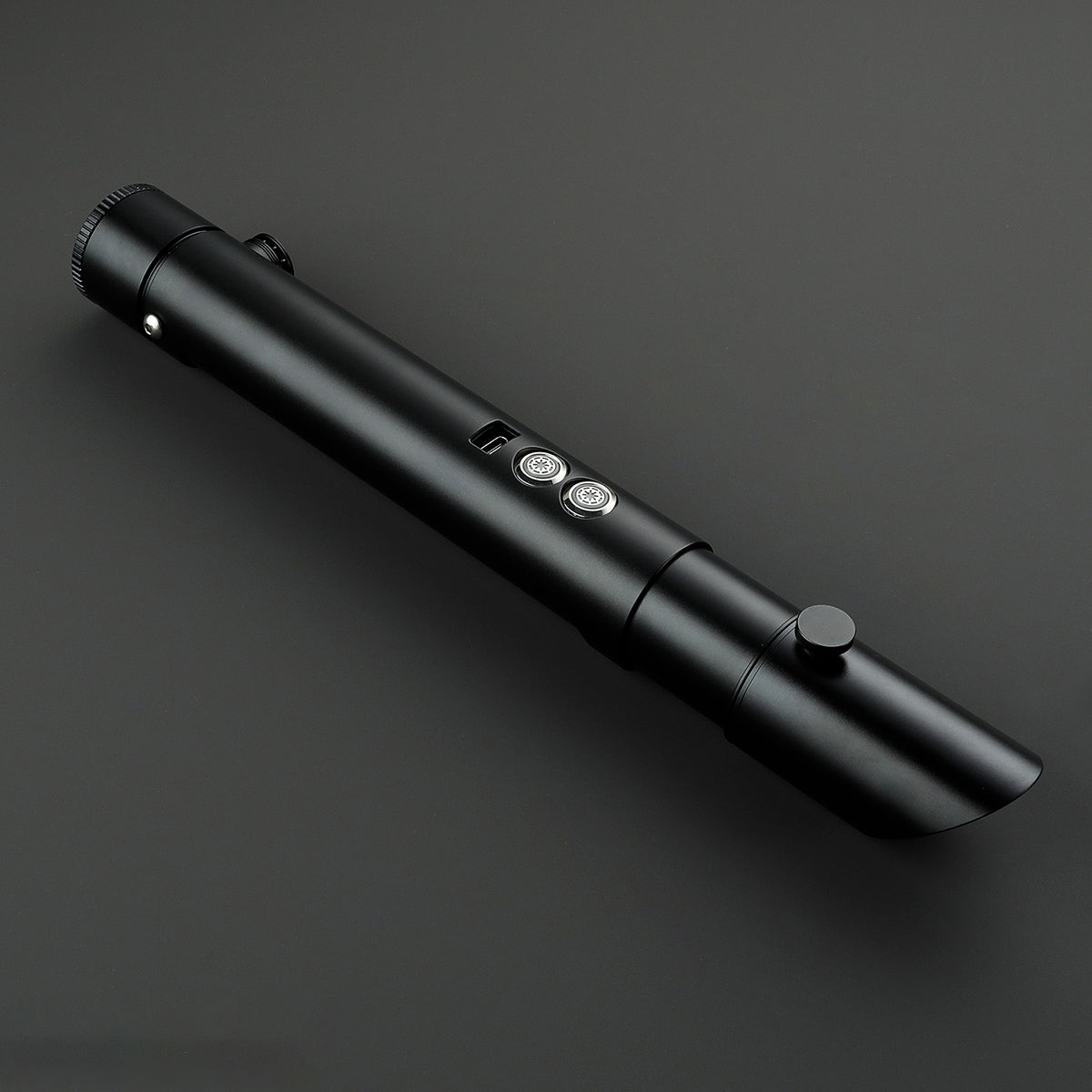

Hilt Parts
Upper Hilt Section
This part is the upper hilt section and will show through the color of the hilt you select.
Thumb Screw
The thumb screw is used to attach most emitters, some require a smaller screw like the one on the side of the saber.
Power Button
See below for all the features you can control with the Power button
AUX Button
See below for the usage and features of the AUX button
Covertec Wheel
The Covertec wheel can be used to attach your saber to a belt using a covertec belt clip.
Pommel
The Kyberlight Saber comes with our standard color matched Pommel cap. Looking to add some style and length to your saber? Check out the full line of pommels
Shop PommelsSleeve
A color matched Adaptation Sleeve comes with every Kyberlight Saber. You can change the look of your saber with our full line of Sleeves.
Shop SleevesEmitter
The color matched Kepler Emitter that comes standard on every Kyberlight Saber can be replaced and customized with our variety of Emitters.
Shop EmittersV10 RGB Operation
SABER MODES:
OFF - Hold AUX while in standby
Standby - Hold Power for 2 LED flashes (1s)
On - Tap Power while in Standby or use motion controls.
WHEN SABER IS ON:
Function | Control | Notes |
---|---|---|
Blaster Deflection | Tap AUX | - |
Lock Up | Hold AUX and Clash Saber | - |
Twist Color Change | Hold Power and Twist Saber (couterclockwise then clockwise) | Twist Saber Quickly to initiate then slowly to see colors. Press Power to set color. |
Solid Color Change | Hold AUX and Twist Saber (counterclockwise then clockwise) | Twist Saber Quickly to initiate then the saber will change solid colors. Press Power to set color. |
Infinate Color Change | Hold AUX and Twist Saber (clockwise then counterclockwise) | Saber will slowly change colors, press AUX to set. |
Power Off | Hold Power for 2 LED flashes (2s) | - |
WHEN SABER IS IN STANDBY:
Function | Control | Notes |
---|---|---|
Ignite Saber | Tap Power | - |
Change to next Sound Font | Tap AUX | You will hear new sound font name |
Change to previous Sound Font | Hold AUX for 4 LED flashes (2s) | You will hear new sound font name |
Change Blade Effect | Point Saber Down, Twist Saber (counterclockwise then clockwise) | Effect will change from Steady, Unstable, Pulse |
Flash on Clash | Hold AUX for 3 LED flashes (1.5s) | Saber will announce change |
Battery Level Check | Hold AUX for 2 LED flashes (1s) | Battery level % announced |
Volume Control | Hold Aux for 1 LED flash (0.5s) | Volume Changes 100%, 75%, 50%, 25%, mute |
Change Saber Effect | Hold Power and tap AUX | Saber will announce new effect Standard, Ghost, Blaster^ |
Turn Saber Completely Off | Hold AUX for 10s | You will hear 'Power Off' |
V10 Kyber-Pixel Operation
SABER MODES:
OFF - Hold AUX while in standby
Standby - Hold Power for 2 LED flashes (1s)
On - Tap Power while in Standby or use motion controls.
WHEN SABER IS ON:
Function | Control | Notes |
---|---|---|
Blaster Deflection | Tap AUX | - |
Lock Up | Hold AUX and Clash Saber | - |
Twist Color Change | Hold Power and Twist Saber (couterclockwise then clockwise) | Twist Saber Quickly to initiate then slowly to see colors. Press Power to set color. |
Solid Color Change | Hold AUX and Twist Saber (counterclockwise then clockwise) | Twist Saber Quickly to initiate then the saber will change solid colors. Press Power to set color. |
Infinate Color Change | Hold AUX and Twist Saber (clockwise then counterclockwise) | Saber will slowly change colors, press AUX to set. |
Power Off | Hold Power for 2 LED flashes (2s) | - |
Drag Effect | Hold Power and clash the saber | - |
Force Effect | Angle blade up, Hold Power & twist the Saber | ~45 degree angle |
Stab Effect | Move the saber quickly in a stabbing motion, forward and backward. | - |
Melt Effect | Hold AUX button & Stab saber, twist to color change | Saber will change solid colors, press AUX to set |
Multi Lock Mode | Hold AUX for 1 LED flash (0.5 s) | Repeat to exit |
Multi Block Mode | Hold AUX for 2 LED flash (1 s) | Repeat to exit |
WHEN SABER IS IN STANDBY:
Function | Control | Notes |
---|---|---|
Ignite Saber | Tap Power | - |
Change to next Sound Font | Tap AUX | You will hear new sound font name |
Change to previous Sound Font | Hold AUX for 4 LED flashes (2s) | You will hear new sound font name |
Change Blade Effect | Point Saber Down, Twist Saber (counterclockwise then clockwise) | Effect will change from Steady, Unstable, Pulse |
Flash on Clash | Hold AUX for 3 LED flashes (1.5s) | Saber will announce change |
Battery Level Check | Hold AUX for 2 LED flashes (1s) | Battery level % announced |
Volume Control | Hold Aux for 1 LED flash (0.5s) | Volume Changes 100%, 75%, 50%, 25%, mute |
Change Saber Effect | Hold Power and tap AUX | Saber will announce new effect Standard, Ghost, Blaster^ |
Pixel <->RGB | Hold AUX for 15s | You will hear 'Power Off' |
Turn Saber Completely Off | Hold AUX for 10s | You will hear 'Power Off', continue to hold until you hear the change |
Default Sound font and Saber/Blade Effects
Below is a list of the included Sound fonts and their preset Blade and Saber Effects. These can all be modified via saber controls or by editing the Config file on the Micro SD card when included.
Sound Font | Kyber-Pixel | RGB | ||
---|---|---|---|---|
Blade Effect | Saber Effect | Blade Effect | Saber Effect | |
The Return | Steady | Photon Ignition | Pulse | Blaster |
The Hermit in the Sands | Steady | Standard | Pulse | Standard |
Father | Steady | Standard | Pulse | Standard |
Savage Knight | Galaxy | Standard | Pulse | Standard |
Dark Saber | Pulse | Broken Ignition | Steady | Ghost |
Emperor | Steady | Standard | Pulse | Standard |
Fire | Fire | Torch | Steady | Ghost |
Kylo | Fire | Scavenger Ignition | Steady | Blaster |
Rey | Steady | Hunter Ignition | Pulse | Ghost |
Battle | Steady | Standard | Pulse | Standard |
Metamorphose | Steady | Standard | Pulse | Standard |
Son of Corellia | Pulse | Standard | Steady | Standard |
Tusken Terminator | Steady | Stack Ignition | Pulse | Standard |
Unlightstable | Unstable | Broken Ignition | Unstable | Ghost |
Electric Staff | Pulse | Warp Ignition | Steady | Ghost |
Mag-Cyl | Steady | Standard | Pulse | Standard |
Glitch* | Unstable | Warp Ignition | Unstable | Ghost |
Darkness* | Pulse | Hunter Ignition | Steady | Ghost |
The Second* | Galaxy | Scavenger Ignition | Pulse | Blaster |
Code Fulcrum* | Pulse | Standard | Steady | Standard |
Shock Baton* | Pulse | Photon Ignition | Steady | Blaster |
The Sorcerer* | Steady | Standard | Pulse | Standard |
Sacrifice* | Fire | Velocity | Steady | Blaster |
Harmony* | Rainbow | Phaser Ignition | Steady | Standard |
The Slayer* | Unstable | Photon Ignition | Unstable | Blaster |
The Forgotten Padawan* | Steady | Broken Ignition | Pulse | Ghost |
Cracked Vengence* | Cracked | Standard | Unstable | Standard |
The Persuit* | Steady | Standard | Pulse | Standard |
Cracked Ego* | Cracked | Scavenger Ignition | Unstable | Blaster |
Wrath* | Unstable | Torch | Unstable | Ghost |
Emperors Hand* | Cracked | Stack Ignition | Unstable | Standard |
Ninth Sister* | Fire | Broken Ignition | Steady | Ghost |
The Betrayed* | Steady | Standard | Pulse | Standard |
The Redeemed* | Steady | Standard | Pulse | Standard |
Rulers Heirloom* | Galaxy | Phaser Ignition | Pulse | Standard |
Evil Fool* | Pulse | Hunter Ignition | Steady | Ghost |
Thunger God* | Candy | Warp Ignition | Pulse | Ghost |
N1 Mod* | Fire | Warp Ignition | Steady | Ghost |
* This font is only included with Micro SD card upgrade when purchasing an RGB saber.
